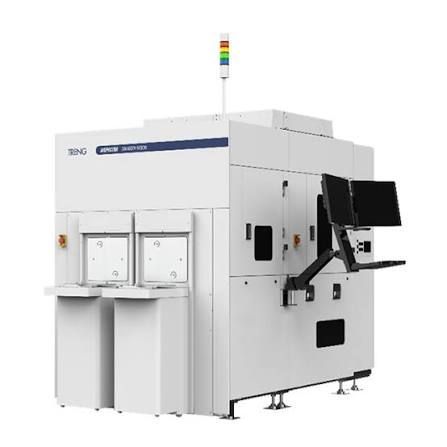

Wafer Inspection Equipment is used in semiconductor manufacturing to examine silicon and other semiconductor wafers.
A Wafer Inspection System combines cameras, lighting, sensors, motion controls, software, and image-processing technologies to identify issues before wafers move to later manufacturing stages. Semiconductor Wafer Inspection Equipment is therefore an important part of quality control in modern chip production.
A wafer is a thin, round piece of semiconductor material that serves as the foundation for manufacturing integrated circuits. Hundreds or thousands of individual semiconductor devices can be formed on a single wafer, making accurate inspection important for identifying problems that could affect multiple devices.
Context
Why Are Semiconductor Wafers Inspected?
Semiconductor wafers pass through many manufacturing steps, including cleaning, deposition, lithography, etching, implantation, polishing, and pattern formation. Each stage can introduce unwanted particles, scratches, cracks, pattern variations, or dimensional changes.
A Wafer Inspection Machine examines the wafer without necessarily changing its physical structure. Depending on the application, inspection may occur after a particular process step or at several points throughout manufacturing.
The basic purpose is to determine whether the wafer meets defined physical and pattern requirements. Inspection data can also help manufacturing teams identify process conditions that may be contributing to recurring defects.
What Does Wafer Inspection Equipment Detect?
Different inspection technologies identify different types of wafer problems. An Optical Wafer Inspection System, for example, uses controlled illumination and imaging to detect differences on the wafer surface.
Common inspection targets include:
- Particles and contamination
- Scratches and surface marks
- Cracks and chips
- Pattern defects
- Missing or distorted structures
- Surface irregularities
- Dimensional variations
- Thickness differences
- Alignment-related problems
A Wafer Defect Inspection System may compare an inspected area with a reference image or another area of the wafer. Advanced systems can classify detected irregularities according to their characteristics.
How Does a Wafer Inspection System Work?
The inspection process generally begins when a wafer is positioned on a precision stage. Automated handling equipment moves the wafer into the inspection position while maintaining controlled alignment.
The system then illuminates or scans the wafer using an appropriate optical or sensing method. Cameras or other sensors capture information from the wafer surface, while software processes the collected data.
A simplified inspection sequence looks like this:
| Inspection Stage | Main Function |
|---|---|
| Wafer loading | Positions the wafer for inspection |
| Alignment | Establishes accurate wafer positioning |
| Illumination or scanning | Directs light or sensing energy toward the wafer |
| Image acquisition | Captures surface or pattern information |
| Data processing | Examines captured information |
| Defect detection | Identifies unusual features |
| Classification | Groups defects by characteristics |
| Measurement | Records relevant dimensions |
| Reporting | Stores inspection results |
An Automated Wafer Inspection System can perform these steps with limited operator involvement. Robotic wafer handling can also move wafers between processing and inspection stations.
Importance
Why Wafer Inspection Matters
Modern semiconductor devices contain extremely small structures. A defect that appears minor to the human eye may interfere with electrical performance or prevent a device from functioning correctly.
Wafer inspection provides information about manufacturing conditions before wafers progress through additional processing. This can help identify process variation and distinguish isolated defects from recurring patterns.
A High Resolution Wafer Inspection System is particularly relevant when manufacturers need to examine increasingly small structures. Inspection requirements can vary according to wafer material, device architecture, process technology, and manufacturing stage.
Inspection for Different Wafer Types
Inspection requirements are not identical for every semiconductor application. Silicon wafers, compound semiconductor wafers, and MEMS wafers can have different surface properties and manufacturing requirements.
Silicon Wafer Inspection Equipment is widely associated with conventional semiconductor production. A Compound Semiconductor Inspection System may be configured for materials such as gallium nitride or silicon carbide, while MEMS Wafer Inspection Equipment can examine structures used in microelectromechanical devices.
Optical, 3D, and Machine Vision Inspection
Optical inspection remains an important approach because it can examine large wafer areas using cameras and controlled lighting. Automated Optical Wafer Inspection can repeatedly scan wafers using predefined inspection parameters.
A 3D Wafer Inspection System adds information about surface height and shape. This can be useful for identifying topographical variations that may not be adequately described by a conventional two-dimensional image.
Machine vision technologies are also becoming more integrated into inspection workflows. A Machine Vision Wafer Inspection System can use image-processing algorithms to identify differences between expected and observed wafer characteristics.
Recent Updates
Greater Automation
From 2024 through 2026, semiconductor manufacturing has continued moving toward greater inspection automation. Automated Semiconductor Inspection Systems increasingly connect inspection equipment with wafer handling, manufacturing execution systems, process monitoring, and data platforms.
This approach allows inspection results to become part of a larger manufacturing information flow rather than remaining isolated measurements.
AI-Assisted Defect Classification
AI Wafer Inspection Systems are another developing area. Machine-learning techniques can assist with recognizing and classifying defect patterns from large volumes of inspection data.
AI does not replace the physical inspection process itself. Instead, it can support software-based analysis by identifying relationships within images and historical inspection information.
More Detailed Metrology
Inspection and measurement are increasingly being combined. An Automated Wafer Metrology System can collect information such as thickness, dimensions, surface characteristics, or other measurable properties.
A Wafer Metrology Inspection System may therefore complement defect inspection by providing quantitative information about wafer characteristics.
Integrated Inspection Workflows
Modern facilities are also using more connected inspection architectures. A Wafer Inspection Automation System can link robotic wafer movement, inspection stations, data collection, and process monitoring.
The overall trend is toward higher automation, greater data integration, and inspection methods capable of handling increasingly complex wafer structures.
Laws or Policies
Semiconductor Manufacturing Requirements in India
In India, semiconductor manufacturing is influenced by industrial, environmental, workplace safety, electronics manufacturing, and government semiconductor-development policies. Programs supporting semiconductor and display manufacturing have also encouraged development of domestic semiconductor capabilities.
Wafer inspection equipment used within manufacturing facilities must operate within the applicable requirements for electrical safety, industrial operations, environmental management, and workplace protection.
Environmental and Workplace Considerations
Semiconductor manufacturing involves chemicals, gases, water systems, electrical equipment, and controlled production environments. Although inspection equipment itself is primarily a measurement and detection system, its installation within a semiconductor facility can be subject to broader site requirements.
Relevant areas may include:
- Electrical and equipment safety
- Worker protection
- Chemical and waste management
- Industrial environmental requirements
- Facility ventilation and controlled environments
- Data and equipment documentation
Requirements can vary depending on the facility, equipment configuration, location, and manufacturing process. Organizations therefore need to assess applicable national, state, and local requirements separately.
Tools and Resources
Inspection Software
Wafer inspection platforms generally include software for image acquisition, defect detection, classification, measurement, and reporting. Some systems can store inspection results so that patterns can be reviewed over multiple production runs.
Wafer Metrology Tools
Wafer Thickness Measurement Systems can determine thickness variation across a wafer. Wafer Dimension Inspection Systems can examine physical dimensions and geometry.
These tools can complement defect inspection by providing measurable information rather than only identifying visual irregularities.
Automated Handling Equipment
Robotic Wafer Inspection Systems use automated mechanisms to transfer wafers between loading areas, inspection stations, and other production equipment. Automated handling helps maintain consistent wafer positioning and reduces unnecessary manual contact.
System Integration Platforms
A Wafer Inspection System Integrator can combine inspection equipment with wafer handling, manufacturing software, data systems, and other production technologies. A Turnkey Wafer Inspection System may combine several components into a coordinated inspection workflow.
The appropriate architecture depends on wafer size, material, manufacturing stage, inspection speed, resolution requirements, and the type of defects being investigated.
FAQs
What is Wafer Inspection Equipment?
Wafer Inspection Equipment is machinery used to examine semiconductor wafers for defects, contamination, pattern problems, surface irregularities, and dimensional variations. It may use optical imaging, sensors, metrology technologies, or combinations of these methods.
How does a Wafer Inspection System work?
A Wafer Inspection System positions a wafer accurately, illuminates or scans its surface, captures inspection data, and processes that information using specialized software. The system can then identify, classify, measure, and document detected irregularities.
What is Semiconductor Wafer Inspection Equipment used for?
Semiconductor Wafer Inspection Equipment is used throughout semiconductor manufacturing to detect defects and process variations. It can support inspection of silicon, compound semiconductor, MEMS, and other wafer types.
What is an Automated Wafer Defect Inspection system?
Automated Wafer Defect Inspection uses automated wafer handling, imaging or sensing, and software analysis to identify defects with limited manual intervention. It can support repeatable inspection across multiple wafers and manufacturing stages.
What is a 3D Wafer Inspection System?
A 3D Wafer Inspection System measures surface characteristics in three dimensions rather than relying only on two-dimensional images. This can provide information about height, depth, shape, and surface topography.
Conclusion
Wafer Inspection Equipment plays an important role in semiconductor manufacturing by identifying defects, surface irregularities, pattern problems, and dimensional variations. A Wafer Inspection System typically combines precision wafer handling, optical or sensing technologies, imaging, data processing, and measurement capabilities. Recent developments have increased automation, AI-assisted analysis, 3D inspection, and integration with semiconductor manufacturing systems. The overall purpose is to provide consistent information about wafer quality throughout the manufacturing process.
