Palletizing systems are automated or semi-automated equipment configurations used to arrange cases, cartons, bags, trays, containers, and other packaged products onto pallets.
By organizing products into defined patterns and layers, these systems create stable pallet loads for downstream handling, storage, and distribution.
Modern palletizing equipment can use robotic arms, gantry mechanisms, layer-forming devices, conveyors, sensors, pallet dispensers, and programmable controls. The appropriate configuration depends on product characteristics, pallet dimensions, production rate, stacking pattern, and automation requirements.
What Are Palletizing Systems?
Palletizing systems are end-of-line packaging systems designed to transfer finished products onto pallets in organized arrangements.
A typical system may include:
- Product infeed conveyor
- Product accumulation conveyor
- Pallet dispenser
- Pallet conveyor
- Layer-forming equipment
- Robotic or mechanical palletizer
- Slip-sheet dispenser
- Safety guarding
- Sensors
- Control system
The equipment can be configured for different products and pallet patterns.
How Palletizing Systems Work
The palletizing process generally follows several coordinated stages.
1. Product Infeed
Finished cases, cartons, bags, or containers arrive from an upstream packaging line.
A conveyor transfers the products toward the palletizing area.
Product flow needs to remain consistent so that the palletizer can maintain the programmed stacking pattern.
2. Product Accumulation
Accumulation conveyors temporarily hold products when the palletizing cycle is not ready to receive the next product.
This helps synchronize the palletizer with upstream equipment.
Sensors can detect product presence and control conveyor movement.
3. Pallet Preparation
An empty pallet is positioned in the palletizing area.
Automatic pallet dispensers can separate individual pallets from a stack and transfer them to the pallet conveyor.
The pallet is then positioned accurately beneath the loading area.
4. Product Grouping
Products are grouped according to the required pallet pattern.
For example, a layer may contain a specific number of cartons arranged in rows and columns.
Product orientation can be adjusted before the products are transferred to the pallet.
5. Layer Formation
A layer-forming system creates the required product arrangement before placement.
Depending on the system, products may be moved using conveyors, pushers, rollers, or robotic tooling.
The goal is to create a consistent layer that matches the pallet dimensions.
6. Pallet Loading
The palletizer transfers the arranged products onto the pallet.
Different machines use different movement methods.
Robotic systems use programmed arm movements, while conventional systems can use mechanical platforms, pushers, or gantry mechanisms.
7. Layer Stacking
The palletizer repeats the loading sequence until the required number of layers has been completed.
Some applications use alternating patterns between layers to improve load stability.
The stacking pattern depends on the product and packaging characteristics.
8. Slip-Sheet Placement
Some pallet loads use sheets of paperboard, plastic, or other material between layers.
A slip-sheet dispenser can automatically place the sheet at the required stage of the palletizing cycle.
9. Completed Pallet Discharge
Once the pallet reaches its programmed height, it is transferred out of the palletizing area.
Downstream equipment may then perform:
- Stretch wrapping
- Strapping
- Labeling
- Pallet inspection
- Storage transfer
Types of Palletizing Systems
| System Type | Main Mechanism | Typical Application |
|---|---|---|
| Robotic palletizer | Robotic arm | Flexible product handling |
| Conventional palletizer | Mechanical movement | High-volume fixed patterns |
| Gantry palletizer | Cartesian movement | Large cases and bags |
| Layer palletizer | Complete-layer transfer | High-throughput applications |
| Bag palletizer | Specialized gripping | Bags and sacks |
| Case palletizer | Case handling | Cartons and cases |
| Mixed-load palletizer | Programmable placement | Multiple product formats |
Robotic Palletizing Systems
Robotic palletizers use industrial robots to pick and place products onto pallets.
The robot uses an end-of-arm tool designed for the specific product.
Common tooling approaches include:
- Vacuum gripping
- Mechanical clamps
- Fork-style tools
- Multi-product grippers
- Custom gripping systems
Robotic palletizers are particularly useful when multiple product formats or pallet patterns need to be handled.
Conventional Palletizing Systems

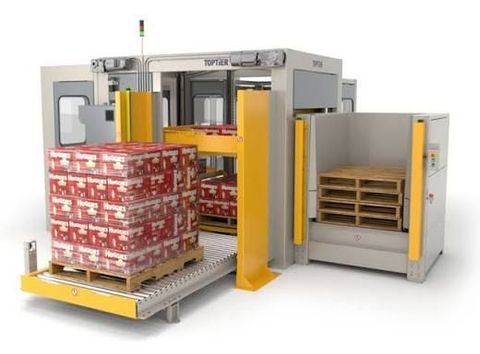

Conventional palletizers use mechanical systems to arrange and stack products.
They can include:
- Layer-forming mechanisms
- Pushers
- Lifting platforms
- Roller conveyors
- Product guides
These systems are often configured around specific product dimensions and pallet patterns.
Gantry Palletizing Systems
Gantry palletizers use a Cartesian movement system to position products along defined horizontal and vertical axes.
A gantry system can move products across a large working area.
They can be configured for cartons, bags, cases, and other packaged products.
Layer Palletizing Systems
Layer palletizers form an entire product layer before transferring it onto the pallet.
This approach can provide high throughput when product dimensions and pallet patterns are relatively consistent.
Layer palletizing can be particularly useful in high-volume production environments.
Palletizing Patterns
The arrangement of products on each layer is important for load stability and efficient pallet utilization.
Common patterns include:
Column Stacking
Products are positioned directly above one another.
This can provide straightforward alignment but may require additional stabilization depending on the packaging.
Interlocking Patterns
Products in adjacent layers are arranged differently so that packages overlap or interlock.
This can improve load stability for suitable products.
Brick Patterns
Products are arranged similarly to a brick wall, with the orientation offset between rows or layers.
Custom Patterns
Some palletizing systems can create application-specific arrangements based on product dimensions and pallet size.
Palletizing System Comparison
| Feature | Robotic | Conventional | Gantry | Layer |
|---|---|---|---|---|
| Flexibility | High | Application-specific | High | Moderate |
| Product formats | Multiple | Usually defined | Multiple | Defined |
| Pattern changes | Software-based | Mechanical changes may be required | Programmable | Configurable |
| Movement | Robot arm | Mechanical | Cartesian axes | Layer transfer |
| Typical use | Flexible production | High-volume fixed production | Large working areas | High-throughput lines |
Products Handled by Palletizing Systems
Palletizing equipment can handle many types of packaged products.
Cartons and Cases
Robotic and conventional palletizers commonly arrange cartons and shipping cases.
Bags and Sacks
Specialized palletizing systems can handle bags containing agricultural, food, chemical, or industrial materials.
Trays
Trays can be arranged into layers and stacked on pallets.
Containers
Bottles, cans, jars, and other containers are often grouped into secondary packaging before palletizing.
Industrial Packages
Certain drums, pails, boxes, and other industrial packages can also be handled by suitable palletizing systems.
Factors to Consider When Selecting a Palletizing System
Product Characteristics
Important factors include:
- Product dimensions
- Product weight
- Package rigidity
- Surface characteristics
- Fragility
- Package shape
These characteristics influence the required gripping or handling technology.
Pallet Dimensions
The system must accommodate the required pallet size and loading pattern.
Pallet height limits also influence robot reach and equipment configuration.
Production Rate
The number of cases, bags, or products processed per minute determines the required palletizing capacity.
High-throughput applications may require multiple robots or dedicated layer-forming equipment.
Pallet Pattern
The required number of products per layer and number of layers should be defined before equipment configuration.
Product Variations
If multiple package sizes or products are processed, the palletizer may require recipe management and programmable pattern selection.
Integration
A palletizing system can be connected with:
- Case packers
- Conveyors
- Checkweighers
- Stretch wrappers
- Strapping systems
- Labeling systems
- Warehouse conveyors
Automation in Palletizing Systems
Modern palletizing systems can integrate sensors, programmable controllers, robots, vision systems, and production monitoring.
Automation can manage:
- Product tracking
- Pallet positioning
- Pattern selection
- Product placement
- Layer counting
- Pallet height
- Slip-sheet placement
- Pallet discharge
Recipe-based controls can allow operators to select different pallet patterns for different products.
Vision-Guided Palletizing
Machine vision can help identify product position, orientation, or package characteristics.
In robotic applications, camera data can be used to determine where a product is located before picking.
Vision systems can be particularly useful when product positioning varies or when multiple product formats are handled.
Pallet Stability Considerations
Stable pallet loads depend on more than simply stacking products.
Important factors include:
- Product dimensions
- Package rigidity
- Layer pattern
- Product orientation
- Pallet dimensions
- Load height
- Weight distribution
- Slip sheets
- Wrapping or strapping
The appropriate pallet pattern should be determined according to the characteristics of the packaged product and downstream handling requirements.
Safety Considerations
Palletizing systems combine moving conveyors, lifting equipment, robots, and other automated mechanisms.
Safety systems can include:
- Guard fencing
- Interlocked access doors
- Light curtains
- Safety scanners
- Emergency stops
- Safety-rated controls
- Controlled access points
The specific safeguarding arrangement should follow applicable machinery and workplace requirements.
Maintenance Considerations
Regular maintenance helps support reliable palletizing performance.
Important areas include:
- Conveyor belts and rollers
- Robot tooling
- Vacuum systems
- Mechanical guides
- Sensors
- Pallet dispensers
- Safety devices
- Pneumatic components
- Bearings
- Control systems
Inspection schedules should be based on equipment design, operating hours, and manufacturer requirements.
Applications of Palletizing Systems
Palletizing systems are used in many industrial sectors.
Common applications include:
- Food and beverage packaging
- Consumer goods
- Pharmaceutical packaging
- Chemical products
- Agricultural products
- Building materials
- Household products
- Industrial manufacturing
- E-commerce fulfillment
The required palletizing configuration varies according to the product, packaging format, and production environment.
Frequently Asked Questions
What are palletizing systems?
Palletizing systems are automated or semi-automated equipment used to arrange packaged products into organized layers on pallets. They can use robots, mechanical mechanisms, conveyors, and programmable controls.
How does an automated palletizing system work?
Products arrive on a conveyor, are grouped into a programmed pattern, and are transferred onto an empty pallet. The system repeats the process until the required number of layers has been completed.
What is a robotic palletizer?
A robotic palletizer uses an industrial robot and specialized end-of-arm tooling to pick and place products onto pallets according to a programmed stacking pattern.
What products can palletizing systems handle?
Palletizing systems can handle cartons, cases, bags, sacks, trays, containers, drums, pails, and other packaged products when the equipment is appropriately configured.
What factors affect palletizing system selection?
Product dimensions, weight, package characteristics, pallet size, production rate, stacking pattern, product variations, automation requirements, and integration with other packaging equipment all influence system selection.
Conclusion
Palletizing systems automate the final arrangement of packaged products into organized pallet loads. From product accumulation and layer formation to robotic placement and pallet discharge, these systems coordinate multiple stages of end-of-line packaging.
Robotic, conventional, gantry, layer, bag, case, and mixed-load palletizing systems provide different approaches for different production requirements. The appropriate configuration depends on product characteristics, pallet dimensions, production rate, stacking pattern, automation level, safety requirements, and integration with the wider packaging line.
